Pressure equalisation elements

Meaning & Function

Fluctuations in temperature triggered by external influences (such as changing weather conditions) can lead to condensation developing within the enclosure. To prevent this from happening, we recommend using pressure equalisation elements.



Our pressure equalisation elements prevent the pressure difference between the inside of the enclosure and the environment, which is responsible for the condensation in the enclosure. The elements made of robust polyamide or stainless steel are fitted with a special air permeable but water repellent membrane in order to maintain the enclosure’s IP protection. You will find solutions in different sizes, materials or colours in our extensive product range.



How many pressure equalisation elements do you need for your application?

The question can be answered quite simply – using our pressure equalisation calculator. Take a look here.


Click here to activate
Marketing / Multimedia Cookies
and show the content.

Click here to activate
Marketing / Multimedia Cookies
and show the content.

To our products

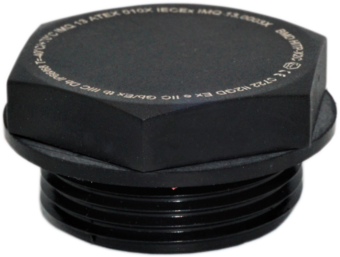

EX PLUG HEXAGON X3 HI

Material:Polyamide 6
Temperatures:from -60°C (SIL) / -40°C to 70°C
Protection Class:IP66/IP68
Connecting Thread:Metric
Colour:RAL 9005

Certifications

Something missing? Then please contact us!

Data Sheets / Installation instructions

Something missing? Then please contact us!

Mounting Instruction
Material: Polyamide 6; Connecting Thread: M
Article numberSize ETSWConnecting thread lengthHeight toPU
83007512X3HIM 12 x 1.51510.05100
83007512X3HISIM 12 x 1.51510.05100
83007516X3HIM 16 x 1.51911.04100
83007516X3HISIM 16 x 1.51911.04100
83007521X3HIM 20 x 1.52311.06100
83007521X3HISIM 20 x 1.52311.06100
83007525X3HIM 25 x 1.52810.06.7100
83007525X3HISIM 25 x 1.52810.06.7100
83007532X3HIM 32 x 1.53615.07.5100
83007532X3HISIM 32 x 1.53615.07.5100
83007540X3HIM 50 x 1.54618.0920
83007540X3HISIM 50 x 1.54618.0920
83007550X3HIM 50 x 1.55518.09.520
83007550X3HISIM 50 x 1.55518.09.820
83007563X3HIM 63 x 1.56918.09.520
83007563X3HISIM 63 x 1.56918.09.620
Unless otherwise stated, all data in millimeters or pieces (quantity)
